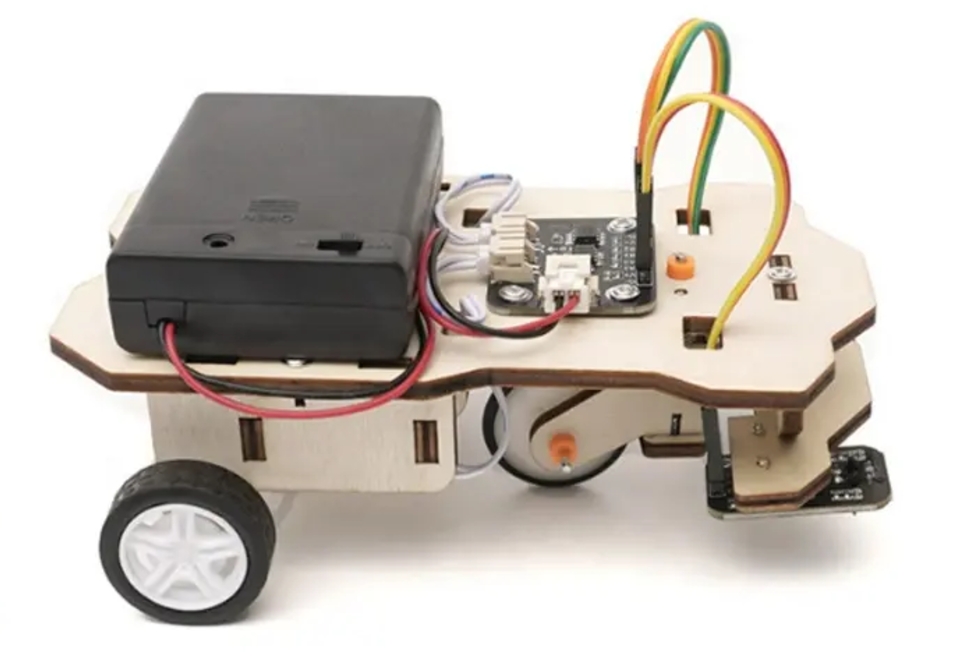

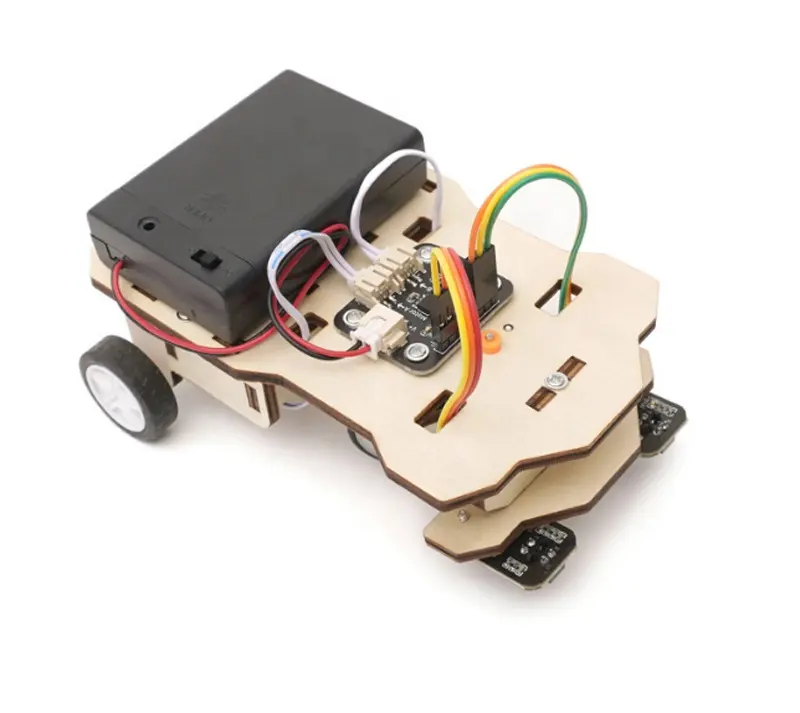

Discover the simplicity and elegance of analog circuitry with our new Analog Line-Following Robot Kit. Perfect for hobbyists, tinkerers, and beginners alike, this robot navigates along a path using purely analog components, without the use of a microcontroller.

Robot Features:

• Analog IR Sensors: Helps detect the edge of the line with high precision by producing voltage differences based on the contrast between the line and floor.
• Operational Amplifiers: Configured as comparators, these Op-Amps interpret the voltage differences and output high or low logic signals.
• Independent Motor Control: The logic signals from the Op-Amps are fed into a motor driver, allowing each motor to be controlled independently for smooth and accurate line following.
• Simple and Reliable: Built with durable electronic components, the logic circuit is designed with simplicity in mind.
• Calibration: Potentiometers located on the sensor boards are adjusted to calibrate the sensors to adapt to new environments, different floor/line color, ambient light, etc.
• Educational and Fun: Ideal for learning the fundamentals of analog electronics and robotics, making it a great project for students or hobbyists.

Follow Along!

Basic assembly instructions are included with the kit, along with a link to our exclusive 'follow along' video guide.

Key Concepts:

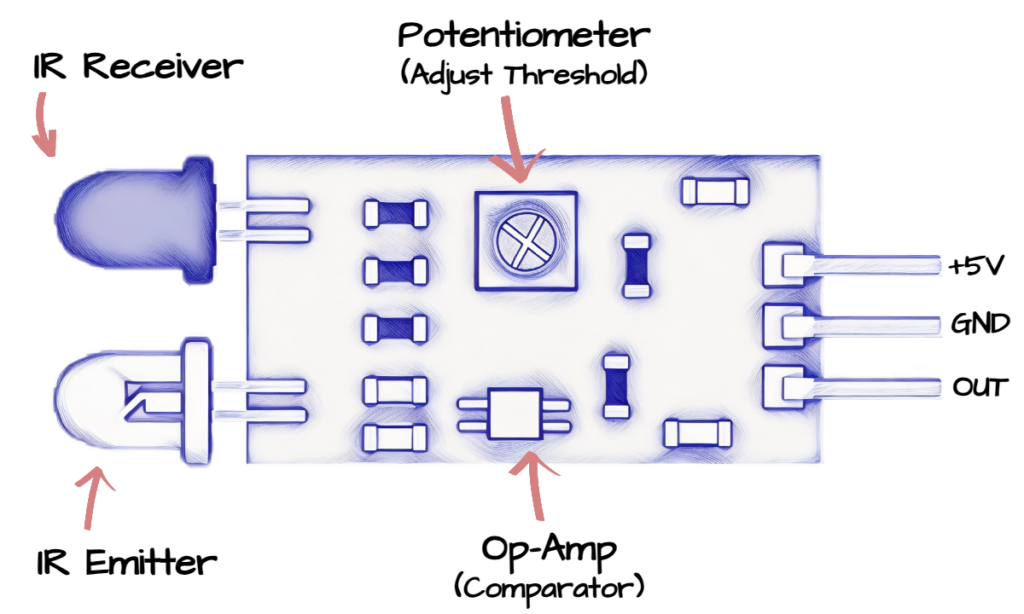

Infrared Sensor - constructed with a combination of the following components:

1. IR Emitter (LED)
2. IR Receiver (Photodiode)
3. Op-Amp (Comparator)
4. Potentiometer

Motor driver - this is what decides the direction and speed at which the connected motor spins.  In this case, each IR sensor output is used for the input to the respective motor driver.
